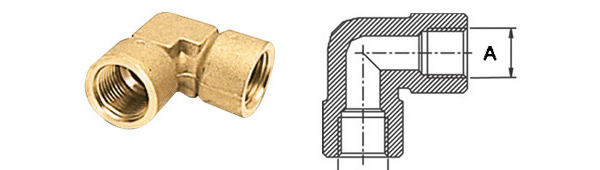

Koleno Samice - Samice

koleno-samice-samice

Part No. A B Materiál
24.0271 1/4 BSP 1/4 BSP Mosaz

24.0272

 3/8 BSP
 3/8 BSP Mosaz
* na požádání v minimálním množství
Tlak max 30 Mpa / 4350 psi

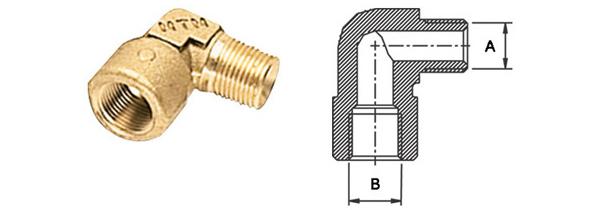

Koleno Samice - Samec

koleno-samice-samec

Part No. A B Materiál
24.0281 1/4 BSP 1/8 BSP Mosaz

24.0276

 1/4 BSP 1/4 BSP Mosaz

24.0283

 3/8 BSP 1/4 BSP Mosaz

24.0269

 1/4 BSP 3/8 BSP Mosaz

24.0277

 3/8 BSP 3/8 BSP Mosaz

24.0278

 1/2 BSP 1/2 BSP Mosaz

24.0280

 1" BSP 1" BSP Ocel
Tlak max 30 Mpa / 4350 psi

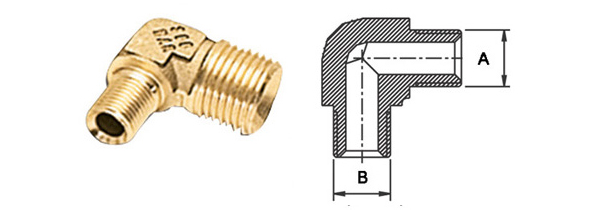

Koleno Samec - Samec

koleno-samec-samec

Part No. A B Materiál
24.0288 1/4 BSP 1/4 BSP Mosaz

24.0285

 3/8 BSP 1/4 BSP Mosaz

24.0289

 3/8 BSP 3/8 BSP Mosaz

24.0282

 1/2 BSP 1/4 BSP Mosaz

24.0287

 1/2 BSP 3/8 BSP Mosaz

24.0230

 1/2 BSP 1/2 BSP Mosaz

24.0291

 1/2 BSP 1/2 BSP Mosaz ø28
Tlak max 30 Mpa / 4350 psi

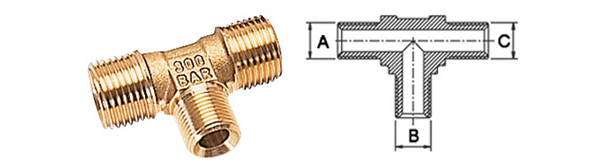

"T" spojka Samec - Samec - Samec

t-samec-samec-samec

Part No. A B C Materiál
24.0324 1/4 BSP 3/8 BSP 3/8 BSP Mosaz

24.0326

 3/8 BSP 1/4 BSP 3/8 BSP Mosaz

24.0336

 3/8 BSP 3/8 BSP 3/8 BSP Mosaz

24.0328

 3/8 BSP 3/8 BSP 1/2 BSP Mosaz

24.0331

 1/2 BSP 3/8 BSP 1/2 BSP Mosaz
Tlak max 30 Mpa / 4350 psi

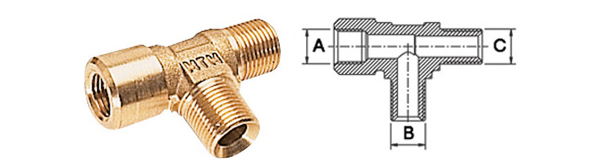

"T" spojka Samice - Samec - Samec

t-samice-samec-samec

Part No. A B C Materiál
24.0327 1/4 BSP 3/8 BSP 3/8 BSP Mosaz

24.0303

 3/8 BSP 1/4 BSP 3/8 BSP Mosaz

24.0321

 3/8 BSP 3/8 BSP 3/8 BSP Mosaz

24.0305

 1/2 BSP 3/8 BSP 3/8 BSP Mosaz

24.0306

 1/2 BSP 1/2 BSP 3/8 BSP Mosaz
Tlak max 30 Mpa / 4350 psi

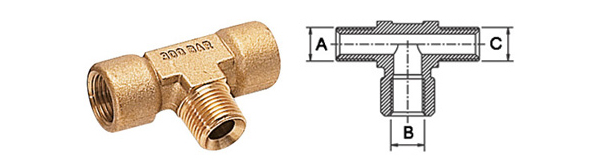

"T" spojka Samice - Samec - Samice

t-samice-samec-samice

Part No. A B C Materiál
24.0296 1/4 BSP 1/4 BSP 1/8 BSP Mosaz

24.0302

 3/8 BSP 3/8 BSP 3/8 BSP Mosaz

24.0316

 3/8 BSP 3/8 BSP 3/8 BSP Mosaz

24.0317

 1/2 BSP 1/2 BSP 1/2 BSP Mosaz

24.0319

 1" BSP 1" BSPT 1" BSP Ocel
Tlak max 30 Mpa / 4350 psi

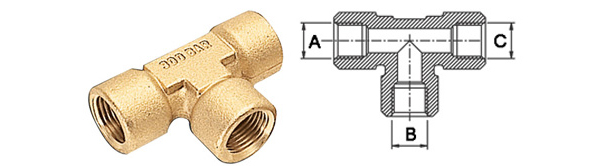

"T" spojka Samice - Samice - Samice

t-samice-samice-samice

Part No. A B C Materiál
24.0294 1/4 BSP 3/8 BSP 1/4 BSP Mosaz

24.0301

 3/8 BSP 3/8 BSP 1/4 BSP Mosaz

24.0298

 3/8 BSP 1/4 BSP 3/8 BSP Mosaz

24.0308

 3/8 BSP 3/8 BSP 3/8 BSP Mosaz

24.0309

 1/2 BSP 1/2 BSP 1/2 BSP Mosaz

24.0310

 3/4 BSP 3/4 BSP 3/4 BSP Ocel

24.0311

 1" BSP 1" BSP 1" BSP Ocel
Tlak max 30 Mpa / 4350 psi

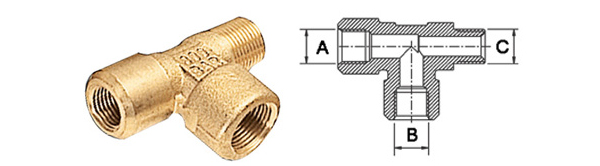

"T" spojka Samice - Samice - Samec

t-samice-samice-samec

Part No. A B C Materiál
24.0312 1/4 BSP 1/4 BSP 1/4 BSP Mosaz

24.0299

 3/8 BSP 1/4 BSP 3/8 BSP Mosaz

24.0313

 3/8 BSP 3/8 BSP 3/8 BSP Mosaz

24.0330

 3/8 BSP 3/8 BSP 1/2 BSP Mosaz

24.0314

 1" BSP 1" BSP 1" BSP Ocel
Tlak max 30 Mpa / 4350 psi

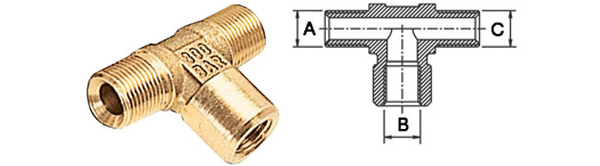

"T" spojka Samec - Samice - Samec

t-samec-samice-samec

Part No. A B C Materiál
24.0323 1/4 BSP 3/8 BSP

3/8 BSP

Mosaz

24.0333

3/8 BSP

3/8 BSP

3/8 BSP

Mosaz

24.0329

1/2 BSP

 1/4 BSP 3/8 BSP Mosaz
24.0334 1/2 BSP 1/2 BSP 1/2 BSP Mosaz
Tlak max 30 Mpa / 4350 psi

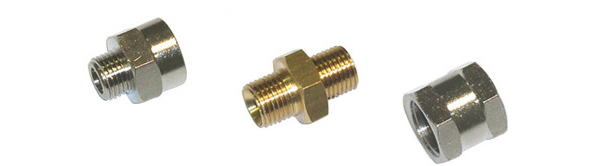

Vysokotlaké spojky

vysokotlake-spojky

Part No. Závity Materiál
35.0070 1/4 BSP M-1/4 BSP M Mosaz

35.0247

 3/8 BSP M-3/8 BSP M Mosaz

35.0248

 <1/4 BSP M-3/8 BSP M Mosaz
Tlak max 30 Mpa / 4350 psi

Nízkotlaké spojky

vysokotlake-spojky

Part No. Závity Materiál
35.0126 3/8 BSP M-1/4 BSP F Mosaz

35.0245

 1/2 BSP M-1/4 BSP F Mosaz

35.0347

 1/8 BSP F-3/8 BSP F Mosaz

Mosazné spojky do hadice

mosazne-sroubeni

Part No. Rozměr Závit
35.0181 ø 6 mm 1/8 BSP M

24.0372

 ø 6 mm 1/4 BSP M

24.0375

 ø 8 mm 1/4 BSP M

24.0378

 ø 10 mm 1/8 BSP M

24.0373

 ø 8 mm 1/4 BSP F

Mosazný kolík

mosazny-kolik

Part No. Závit
35.0004 1/4 BSP M

35.0003

 3/8 BSP M

Bicone pro nylonové trubice a matice pro Bicone

bicone

Part No. Popis Rozměr
35.0225 Bicone pro nylonové trubice ø 6 mm
35.0224 Bicone pro nylonové trubice ø 8 mm
35.0054 1/4 BSP F matice pro Bicone ø 6 mm
38.0046 1/4 BSP F matice pro Bicone ø 8 mm
